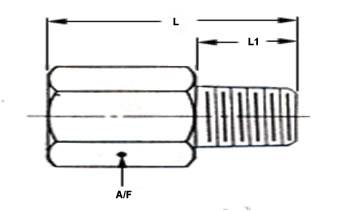

| TH NPT |
A/F |
L |
L1 |
| Female |
Male |
|
inch |
mm |
inch |
mm |
| 1/8 |
1/16 |
5/8 |
1.03 |
26.2 |
0.38 |
9.7 |
| 1/8 |
1/16 |
5/8 |
1.03 |
26.2 |
0.38 |
9.7 |
| 1/4 |
1/8 |
3/4 |
1.22 |
31 |
0.38 |
9.7 |
| 1/4 |
1/4 |
3/4 |
1.40 |
35.6 |
0.38 |
9.7 |
| 3/8 |
1/8 |
7/8 |
1.44 |
36.6 |
0.38 |
9.7 |
| 3/8 |
1/4 |
7/8 |
1.44 |
36.6 |
0.56 |
14.2 |
| 3/8 |
3/8 |
7/8 |
1.44 |
36.6 |
0.38 |
9.7 |
| 1/2 |
1/8 |
1.1/8 |
1.50 |
38.1 |
0.38 |
9.7 |
| 1/2 |
1/4 |
1.1/8 |
1.69 |
43 |
0.56 |
14.2 |
| 1/2 |
3/8 |
1.1/8 |
1.69 |
43 |
0.56 |
14.2 |
| 1/2 |
1/2 |
1.1/8 |
1.88 |
47.8 |
0.56 |
14.2 |
| 3/4 |
1/4 |
1.3/8 |
1.78 |
45.2 |
0.56 |
14.2 |
| 3/4 |
3/8 |
1.3/8 |
1.78 |
45.2 |
0.56 |
14.2 |
| 3/4 |
1/2 |
1.3/8 |
1.94 |
49.3 |
0.75 |
19.1 |
| 3/4 |
3/4 |
1.5/16 |
2 |
50.8 |
0.62 |
15.7 |
| 1 |
1/4 |
1.5/8 |
2.13 |
54.1 |
0.38 |
9.7 |
| 1 |
1/2 |
1.5/8 |
2.16 |
54.9 |
0.75 |
19.1 |
| 1 |
3/4 |
1.5/8 |
2.19 |
55.7 |
0.75 |
19.1 |
| 1 |
1 |
1.5/8 |
2.28 |
57.9 |
0.88 |
22.4 |
|
|
| |
|
|
|
|
